Description
Product Name |

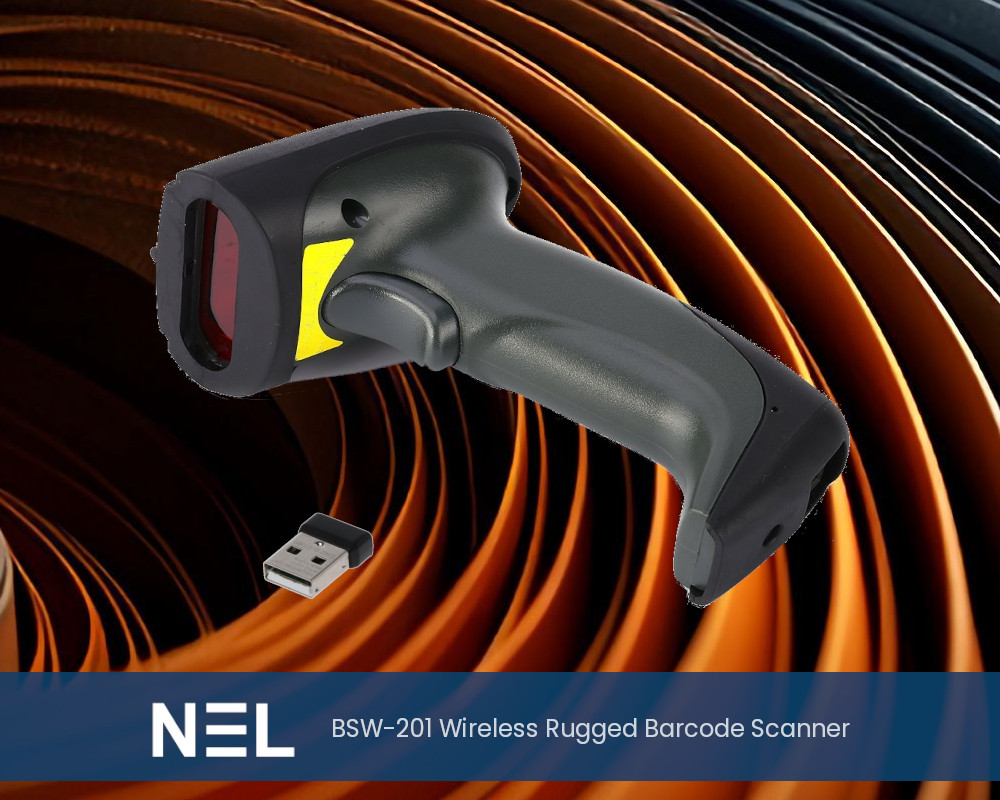

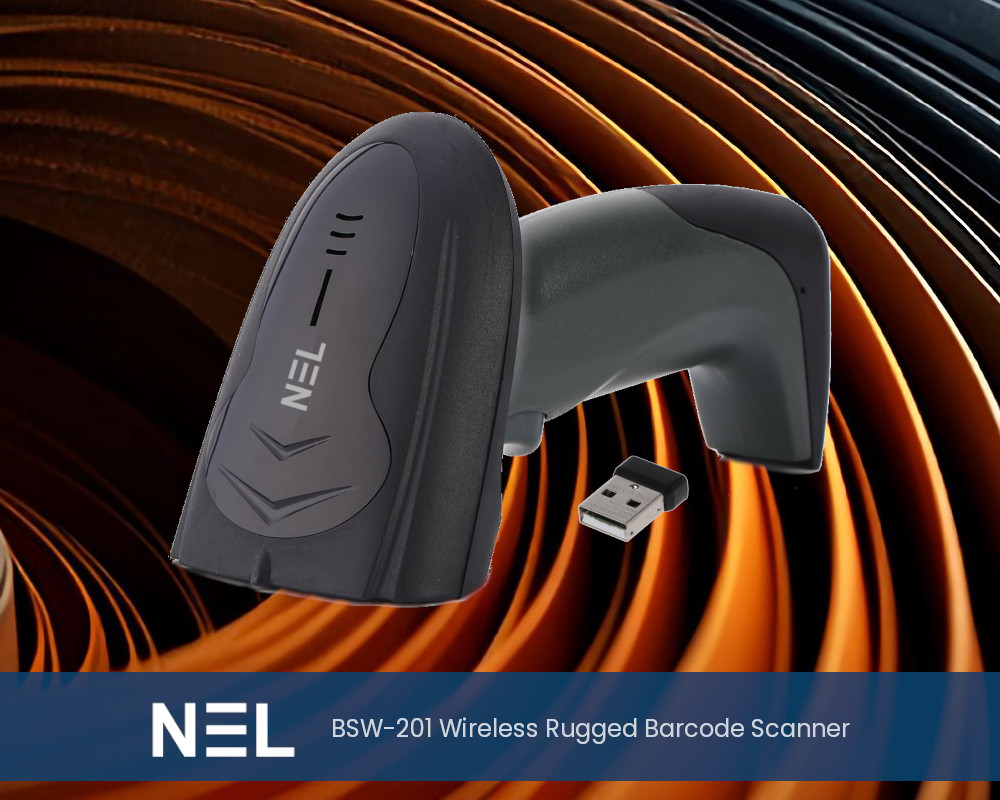

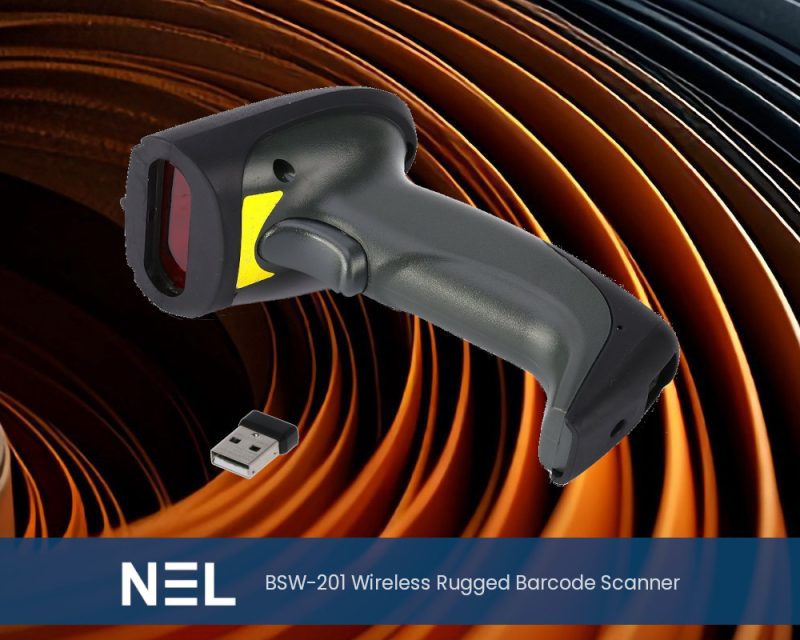

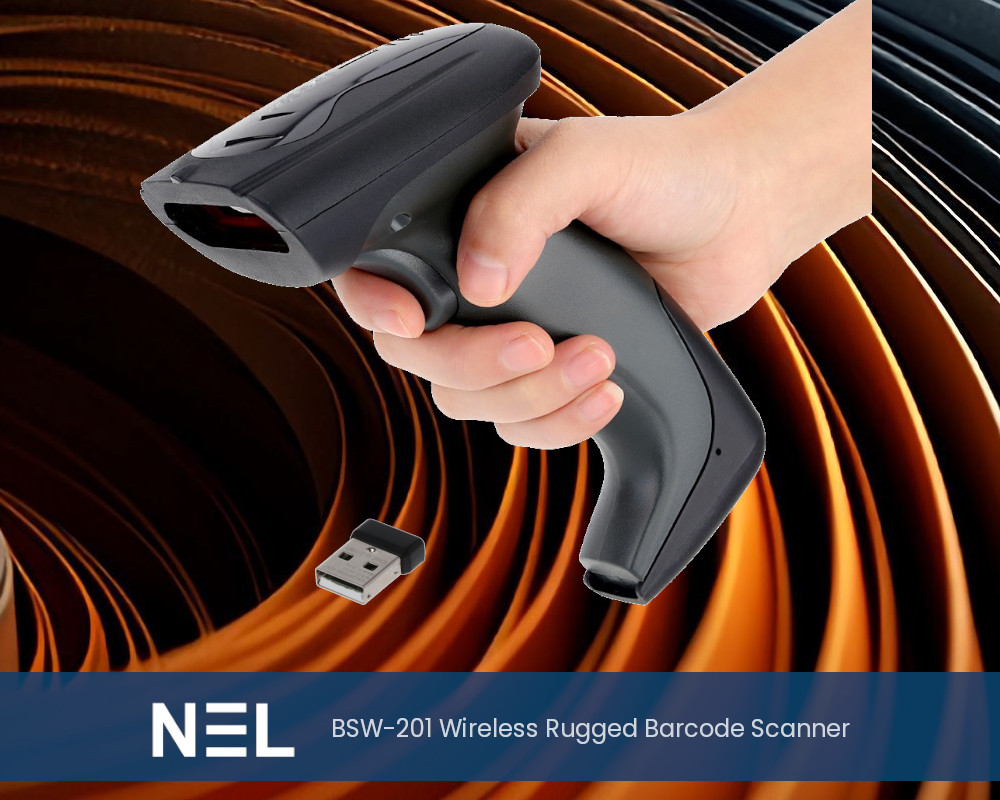

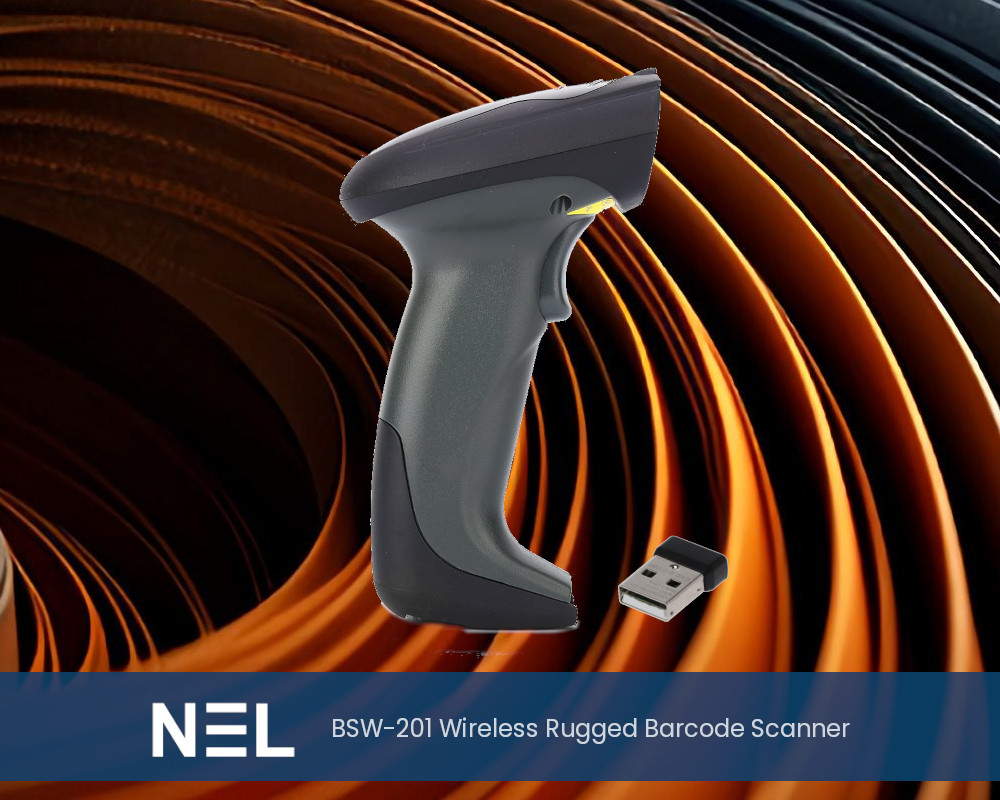

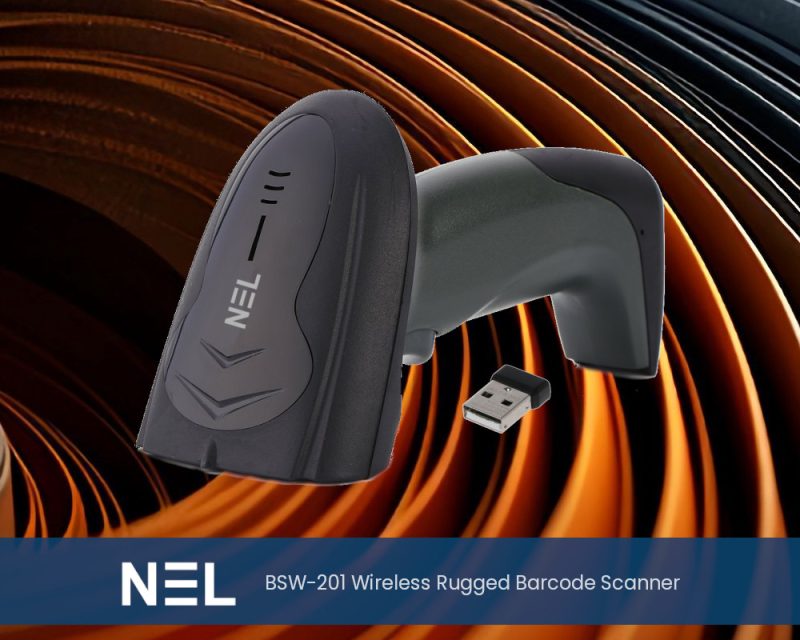

NEL BSW – 201 |
Transmission Mode |
2.4GHz Wireless / Wired |
Sensor |
CMOS |
Trigger mode
|
Handheld, Continuous, Auto-Induction |
Hull material
|
ABS + Rubber |
Promotion Pattern
|
Buzzer and LED indicator |
Resolution Ratio
|
1280 x 800 CMOS |
Optical Source
|
620nm Visible red light diode |
Decoding speed
|
500 scans per second |
Resolution |
4 mil |
Scanning angle |
±360°±65°±60° (Left and right, front and back, rotation) |
Decoding capacity |
1D: UPC-A, UPC-E, Code 39, Code 39, Code 128, Code 128, EAN128, EAN-8, EAN-13, Codabar,Code93, Discrete2of5, IATA,RSSvariants, Codabar, Industrial 2 of 5, Chinese 2 of 5, Inteleaved2/5, Interleaved2of5 and China postal service code,etc.2D: PDF417, QR, Aztec, DataMatrix, Maxicode, MicroPDF417,etc. |
System Capacity |
For Linux/ Android/ Windows XP/Vista/7/8/10/ Windows Server 2003/2008/2010 |
Depth of Field |
Code39 13mil(2cm-130cm) Code39 4mil(3cm-15cm) EAN13 13mil(3cm-29cm)DM 15mil(2cm-14cm) QR 15MIL(2cm-30cm) PDF417 15mil(4cm-30cm) |
Voltage |
5V DC |
Temperature |
Storage: -40°C ~ 60°C | Working: -20℃ to 50℃ |
Relative Humidity |
0 ~ 95% |
Drop test |
3m fall to concrete |
OS |
Windows 11, 10, 7
Linux |
Certificate |
CE, FCC, RoHS, IP54 |
