Description
|
Product Name |

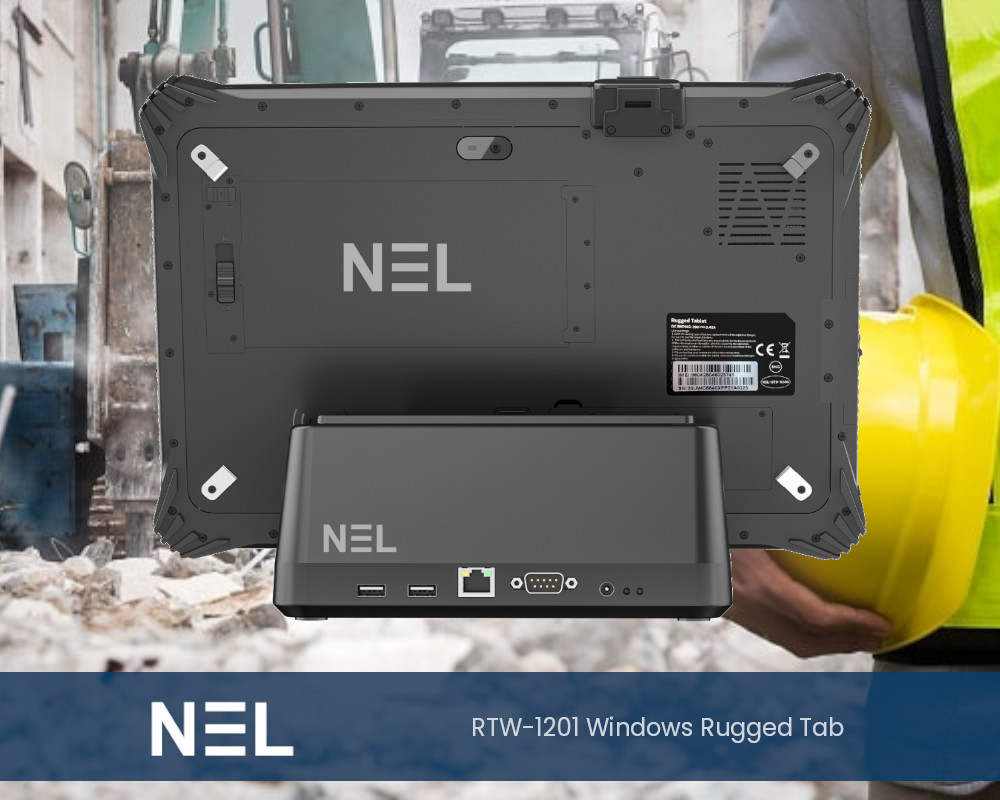

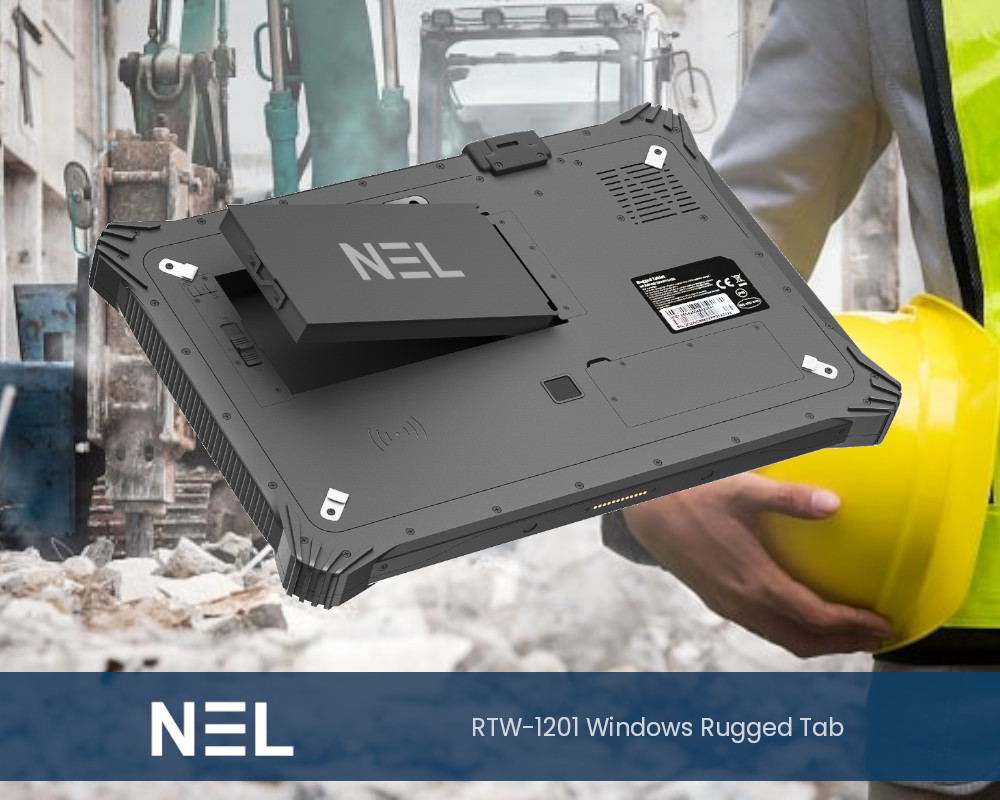

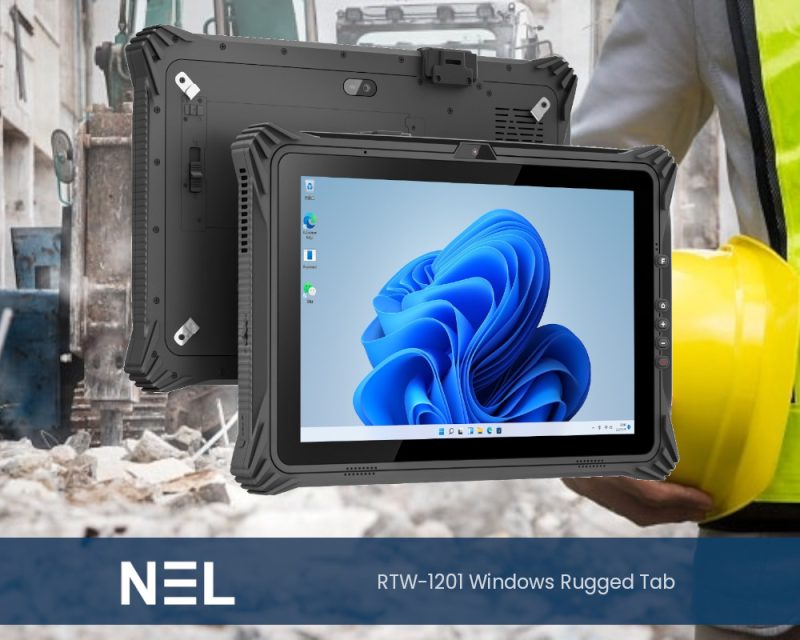

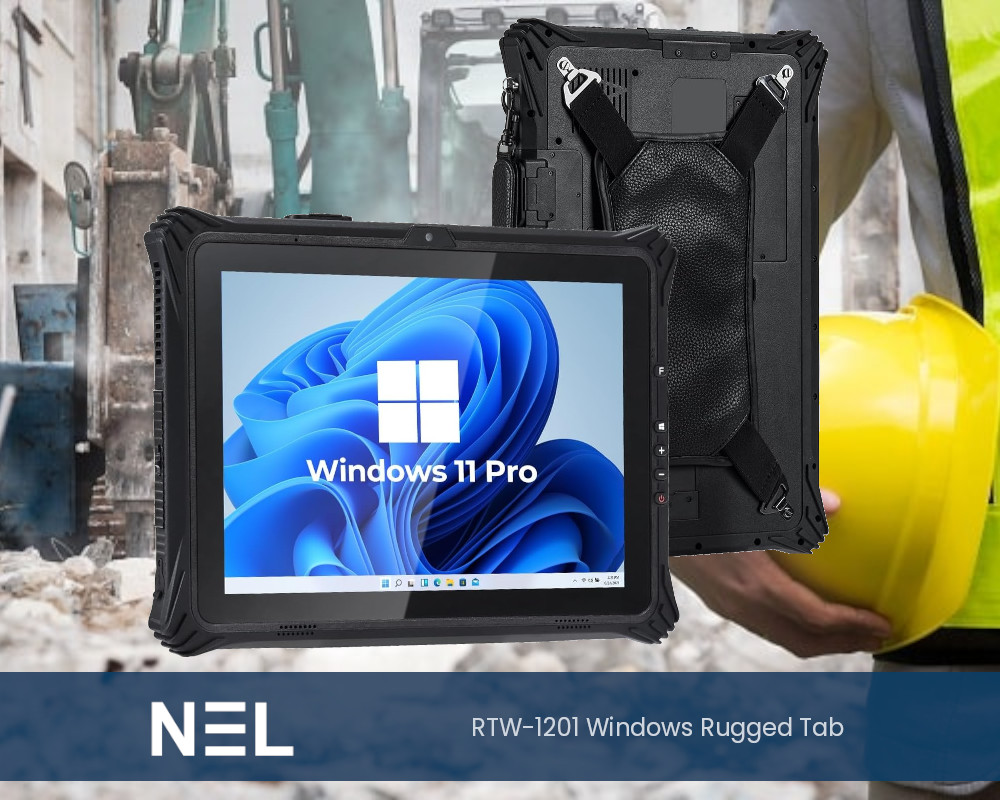

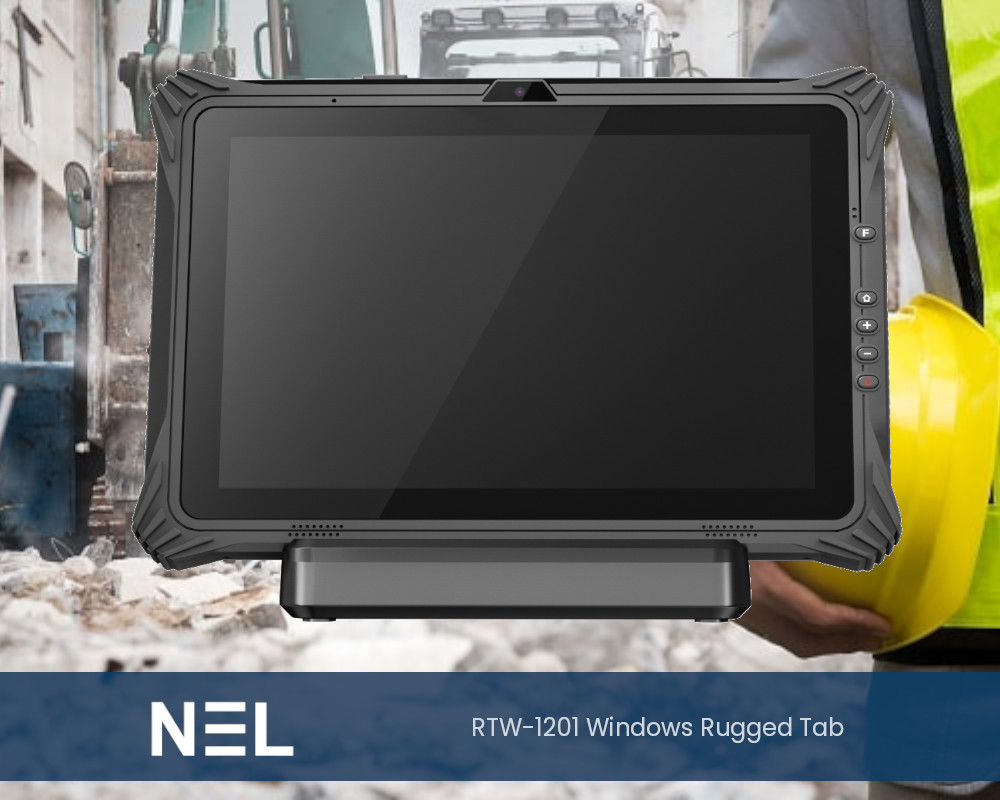

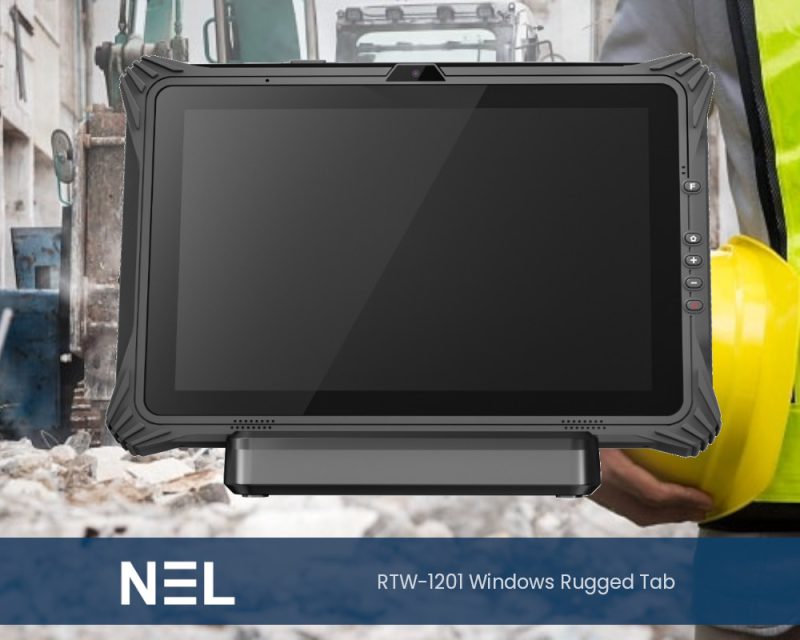

RTW-1201 Windows Rugged Tab |
|
Color |
Black |
|
CPU |
Intel Celeron N5105 |
|
RAM |
8GB (16GB Optional) |
|
Storage |
128GB Extendable M.2 NGFF |
|
Display |
12.2″ Display with 10 points Capasitive, G+G, Rigidity: above 7H-Anti-scratch, Support 930 active pen |
|
Display Resolution |
1920 x 1200 IPS, 16:10 ratio |
|
Operating System |
Windows 10, 11 64 bit |
|
SIM Configuration |
Single SIM 4G |
|
Network |
GSM / WCDMA / LTE |
|
Bluetooth |
v5.0 10m distance |
|
WiFi |
802.11 a, b, g, n, ac 2.4GHz 5.8GHz |
|
NFC |
Optional |
|
Camera |
Front: 5MP Rear: 8MP with flash light |
|
Speaker |
1 x 8Ω 0.8W Water proof |
|
Mic |
Sensitivity: -42db, Output resistance:2.2k Ω |
|
Paper Type |
Thermal Roll Paper |
|
Paper Roll Diameter |
40mm Max |
|
Indicators |
Power indicator: always blue colour if device is powered on
Battery Indicator:
|
|
Interfaces |
1 x Type A USB 3.0
1 x Type C USB 3.0 1 x 3.5mm standard earphone jack 1 x HDMI 1.4a mini 1 x TF extensive external memoty (128 GB max) 1 x SIM (4G) 1 x DC Power 1 x pogo (Docking port) |
|
Keys |
1 x F Key (Scanner)
1 x Volume + 1 x Volume – 1 x Windows key 1 x Power |
|
Safety Standards |
CE, FCC, RoHS |
|
Power Supply |
Input：AC 100-240V, 50-60Hz,1.5A Output：DC 19V/3.42A |
|
Battery |
Small Battery: Li-Polymer Non-removable 7.4V 700mAh Large Battery: Li-Polymer Hot-swap 7.4V 6300mAh |
